This is a typical level measurement of the titanium powder tank. The particles are ultra-fine, the dielectric constant is low, and the reflected signal is weak. It is easy to adhere to the surface of the antenna. The ANL-9080 80GHz frequency modulated continuous wave (FMCW) radar not only has strong penetrating power for large dust, but also adopts a number of original technologies to provide strong performance guarantee for high stability and high precision level measurement in powder applications.

Key points: Titanium powder, ultra-fine powder, easy to adhere, low dielectric constant

Like all mineral powders, the fineness of titanium powder is small, which can be divided into nano-level and micro-nano level. It is an ultra-fine medium in solid particles. The air blowing method is used on-site, and the tank is covered with dust. At the same time, due to the influence of static electricity, the powder easily adheres to the surface of the antenna, which interferes with the conventional level measurement.

CHINASIMBA' ANL-9080 80GHz radar level meter not only has the technical advantages of FMCW continuous wave, but also puts a lot of effort into the software design of the product to create absolute performance advantages. The real-time waveform of the measurement sent back on site shows that in a dusty occasion, the signal energy is severely weakened by strong dust, and the product's dynamic gain control and TIQU echo algorithm can still detect echo energy higher than 50dB. This is one of the prerequisites for accurate measurement of powder materials and a strong guarantee for stability. In addition, the product software adopts the original multi-echo mode active tracking intelligent identification technology, not only in the face of this titanium powder measurement, but also in other harsh working conditions with multiple interferences, it can stably determine the correct echo position , Get high-precision measurement results.

  • Titanium powder has low dielectric constant and is easy to accumulate and attach to the antenna
  • Automatic gain control technology to improve the quality of echo signals and ensure measurement stability
  • Multi-echo mode active tracking and identification technology, correct echo identification, accurate and reliable measurement
  • The lens antenna has extremely strong penetrating power to large dust

ANL-9080 80GHz radar for level measurement of titanium powder

Radar measurement interface

Echo curve under dust and weakened signal

Sandstone once pulverized is fed to Sandstone silos via Conveyors. The sandstone is non-uniform in the form of both chips and fine particulate dust.

Key points: sandstone, fast change of level, high accuracy

Sandstone silos are normally tall and difficult to access structures and require a level measurement product requiring minimum maintenance.

CHINASIMBA’s ANL 9127 120 GHz THz FMCW [Frequency-Modulated-Continuous-Wave] technology with a 1°beam angle is the perfect choice for difficult to access, sandstone silos, is virtually maintenance free and provides higher accuracies than similar products available in the market.

For traditional debugging method of large silo, back to the top of silo agian to check or dignose the setting increased the risk for users and engineers. ANL-9127 integrates Bluetooth wireless connection, which provides a way to help engineers and users to manage measurement on sites via cell phone.

  • Easy installation and maintenance free
  • 120GHz provides better accuracy
  • Reliable measurement for fast level change of solids

ANL-9127 120GHz radar level transmitter is mounted on top of a sandstone silo

Liquid paraffin oil is a mineral oil, and is a by-product of petroleum distillation. It is transparent, colorless, odorless and tasteless oil, which is mainly composed of heavier alkanes. Paraffin oil and paraffin wax are used extensively in the medical, and cosmetic industries.

Key points: paraffinreaction vessel, foamspenetrate foams

CHINASIMBA’s ANL-9127 120 GHz is the perfect candidate for paraffin liquid level measurement in small tanks. The ANL – 9127 comes equipped with a specially designed PTFE Antenna that operates well in processes that involve petroleum distillation with foaming occurring throughout.

  • Easy Installation and maintenance free
  • Reliable level measurement
  • Unaffected by turbulent surface and foams



 Paraffin reaction vessel

Paraffin tank

Pulverized Coal is fed to Gravimetric Coal Feeders through a Standpipe. Coal once pulverized is fed to Coal Feeders via a Standpipe. The coal is in the form of fine particulates and akin to dust.

Key points: long standpipe, coal powder, low DKinner joint interference

Standpipes are normally tall and difficult to access structures and require a level measurement product requiring minimum maintenance.

CHINASIMBA’s ANL 9127 120 GHz THz FMCW [Frequency-Modulated-Continuous-Wave] technology with a 1°beam angle is the perfect choice for difficult to access, narrow [normally 1.5m] Standpipes, is virtually maintenance free and provides higher accuracies than similar products available in the market.

  • Easy installation and maintenance free
  • Unaffected by dusty conditions
  • Adapt to 1.5m long stand pipe

ANL-9127 was mounted on top of a reforming pulverised coal silo

Measurement status on ANL-9127 120GHz FMCW radar level transmitter

Unloading from cement clinker silos to a truck. This is a close space full of dusts, monitoring a clinker truck real-time loading level.  ANL-9127 120GHz FMCW radar level transmitter's fast response and high signal resolution ensure the result is satisfied.

Key points: clinker silo, close space, heavy dust, fast response

Cement Clinker Silos are normally telescopic and difficult to access structures and require a level measurement product requiring minimum maintenance. The environment at the Clinker discharge is dust laden. Hence, accurate measurement is required in real time requiring very fast response times and excellent signal resolution CHINASIMBA’s ANL 9127 120 GHz THz FMCW [Frequency-Modulated-Continuous-Wave] technology with a 1°beam angle is the perfect choice for Cement silos is virtually maintenance free and provides higher accuracies than similar products available in the market.

  • Easy installation and can fit into close space
  • Capable of fast level change
  • Unaffected by dusts
  • Maintenance free

ANL-9127 was installed in a close space full of dusts, clinker shipment

ANL-9127 120GHz was mounted on top of a clinker truck, monitoring fast change loading level

This application is level measurement in a liquid gas tank, which is a 100m tall tank. We apply 120GHz FMCW radar level transmitter in this case, which has high frequency can reach to 120GHz and 150m for maxium range, meanwhile unaffected by obstacles.

Key points: gasmeter, gas, 90m measuring range, inner interference

This is a typical application of gasmeter. Gas governance has been becoming more and more important nowadays. Monitoring gas in real-time relies on more and more high efficiency digital measures.

ANL-9127, 120GHz FMCW THz radar level transmitter, is the first 120GHz radar around the world. It is based on advanced FMCW (Frequency-Modulated-Continuous-Wave) technology. It can reach 1° beam angle, and delivers good sensitivity and accuracy. It offers higher bandwidth. These advantages make measurement much easier, more accurate, more stable and environmental adapatablity,no matter of solids or liquids. Dust or steam environment does not interfere with radar level transmitter's detection.

  • Easy installation and minimized maintenance
  • Accurate measurement at a range of 90m
  • Unaffected by obstacles inside the measuring path

ANL-9127 120GHz FMCW radar level transmitter was mounted on 90m gasmeter

PVC Powder and PVC Chips are manufactured and stored in PVC Silos or Bins depending on plant scale. PVC Silos silos are difficult to access structures with narrow openings and require a level measurement product requiring minimum maintenance.

Key points: PVC powder, small dielectric constant, heavy dust

CHINASIMBA’s ANL 9127 120 GHz THz FMCW [Frequency-Modulated-Continuous-Wave] technology with a 1°beam angle is the perfect choice for PVC silos with narrow openings, is virtually maintenance free and provides higher accuracies than similar products available in the market.

  • Accurate measurement with small dielectric constant
  • Unaffected by dusty environment and buildup onto antenna
  • Easy installation and maintenance free
  • Unaffected by obstacles presented inside the PVC powder silo

ANL-9127 120GHz radar level transmitter was mounted on top of PVC powder silo


Key points: cement clinker, high temperature

CHINASIMBA’s ANL 9127 120 GHz THz FMCW [Frequency-Modulated-Continuous-Wave] technology with a 1°beam angle and a high temperature standoff is the perfect choice for Cement Clinker silos is virtually maintenance free and provides higher accuracies than similar products available in the market.

It offers higher bandwidth. These advantages make measurement much easier, more accurate, more stable and environmental adapatablity, no matter of solids or liquids. Dusty or sticky environment does not interfere with radar level transmitter's detection.

ANL-9127 120GHz FMCW radar high temperature type is mounted on top of cement clinker silo

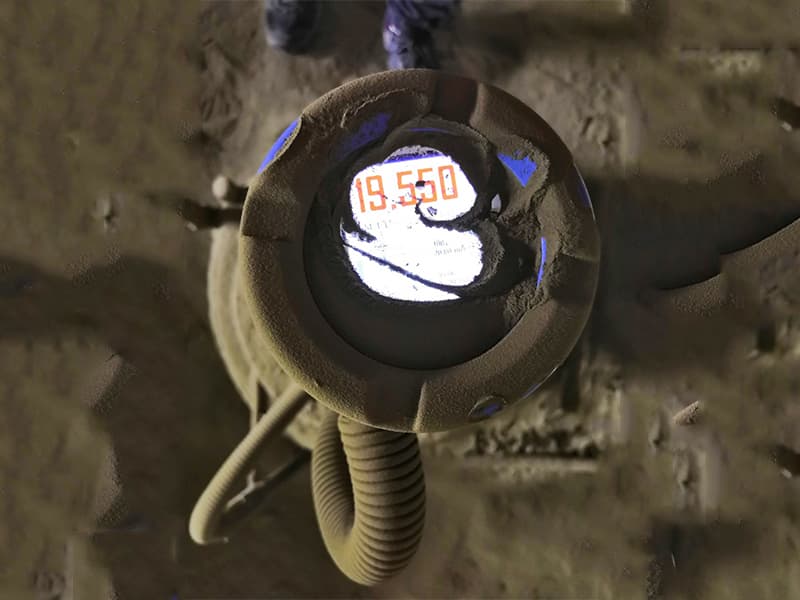

Cement clinker silo with high temprature and strong dust environment

Aluminum Silos are normally tall and difficult to access structures and require a level measurement product requiring minimum maintenance.

Key points: alumina powder silo, low DK

CHINASIMBA’s ANL 9127 120 GHz THz FMCW [Frequency-Modulated-Continuous-Wave] technology with a 1°beam angle is the perfect choice for Aluminum silos is virtually maintenance free and provides higher accuracies than similar products available in the market.

  • Easy installation and maintenance-free.
  • Reliable and continuous measurement.

ANL-9127 120GHz FMCW radar was mounted on the top of electrolytic alumina silo

Measurement status of ANL-9127 in the state of low DK and strong dusts

To crystallize an impure, solid compound, hot solvent is added to it to completely dissolve it. As the solution cools, the solvent can no longer hold all of the solute molecules, and they begin to leave the solution and form solid crystals.

Key points: crystallization, high temperature, small vessel

In the Sugar and similar industries, Crystallization Vessels are used to extract crystals under sanitary conditions. Most reactors are made of stainless steel with reactions at high process temperatures.

CHINASIMBA’s ANL – 9127 120 GHz is the perfect candidate for liquid level measurement in small tanks. The ANL -9127 comes equipped with a specially designed PTFE Antenna that operates well in processes that rely on crystal extraction to either purify or separate crystals when water or a solvent dissolve from the mixture.

  • Reliable measurement unaffected by blockage and buildup.
  • Easy installation and no maintenance required.
  • Applicable to high temperature (160°C).

The top of this vessel is congested with crystal substance

ANL-9127 120GHz FMCW radar was mounted on the vessel with short range and high temperature

This application is typical coal mines in power plant. The key of the solution is to apply ANL-8260AG2 lens radar, which has very strong penetration ability in the dusty and low DK material measurement environment.

Key points: coal mines, adherence, lens radar, low DK

This is typical application of coal mines in power plant. Coal governance has been becoming more and more difficult nowadays due to the high adherences and unstable echo than regular solid. For this complex environment, the key solution for it is to make the equipment penetrate strong dust and applied to low DK medium.

ANL-8260AG2, 26GHz RF harmonics maintenance free patented lens radar level transmitter, is one of measuring in strong dust or crystallization series product. It uses low power for transmission, and delivers good sensitivity and stability. It offers higher bandwidth. These advantages make cement measurement much easier, more accurate, more stable and environmental adaptability.

For the traditional solution, it required air purge for purging the coal dusts covered on the antenna(normally for horn antenna type). ANL-8260AG2 has unique patented lens antenna, its strong penetration ability can easily penetrate dusts. No need air purge and no fear of adherences.

Coal mine conveyor in power plant

ANL-8260AG2's lens antenna was covered with material and without air purge, it's still working well

In the Pharmaceutical industry, Reactors are used to mix and compound various drug types under sanitary conditions. Most reactors are made of stainless steel with reactions at high temperatures.

Key points: lens antennacorrosive liquidsstrong steamhigh temperature

CHINASIMBA’s ANL – 8260 AX 26 GHz is the perfect candidate for liquid level measurement in small tanks. The ANL – 8260 AX comes equipped with a specially designed PTFE Antenna that operates well in processes that require steam at high temperature and chemicals of varying characteristics.

Besides, traditional product have to consider how to keep equipment away from reactor to make sure hygenic in tank, ANL-8260AX has unique design for antanna and inner construction. No need air purge and no fear of high temperature.

ANL-8260AX was mounted on a pharmacy reactor

Measurement status of ANL-8260AX len radar level transmitter

Cement dust is all pervasive and covers the antenna thus rendering most comparative products delivering an unstable echo and requiring constant cleaning in level measurement.

Key points: strong dust, low DKcements, no air purge

CHINASIMBA have developed a purpose built lens antenna that delivers a stable echo and does NOT require either continual cleaning or an air purging connection.

CHINASIMBA’s ANL-8260AG2, 26GHz RF uses low power for transmission, and delivers good sensitivity and stability. Over a higher bandwidth thus rendering it the perfect choice for multiple cement industry applications.

Besides, the traditional product have to install air purge, ANL-8260AG2 has unique patented lens antenna can reach strong penetration for dust. No need air purge and no fear of adherences.

ANL-8260AG2 lens radar was installed in the cements silo

Current cement level

Current echo displayed on ANL-8260AG2, the signal is still strong even in the dusts

This application is typical hydrological water measurement. The key of the solution is to apply 24GHz FMCW hydrological radar AiW-4111, which has higher accuracy and faster response time, more compact structure to measure via mobile phone in water application. Encapsulated IP68 waterproof protection.

Key points: wireless, Bluetooth, water measurement, IP68

This is a minicipal manhole network constructions project to be part of "Digital City", "Sponge City" plans. Water governance has been becoming more and more important nowadays. Water recycling, water treatment, and water management relies on more and more high efficiency digital measures.

AiW-4111 - 24GHz FMCW Planar Array ALL WEATHER Hydrological Radar Level transmitter uses an 80mm dia. Planar Array antenna to measure the level of water in rivers, lakes, channels and reservoirs. It is ideal for hydrological monitoring, forecasting, analysis, water conservancy calculations, water resources development.

In addition to RTU to obtain measured values from the Radar Level transmitter, the AiW-4111 uses Bluetooth for communication from a measurement site to base.

Checking the echoes on mobile phone, AiW-4111 mounted in the city manhole cover
