Feature

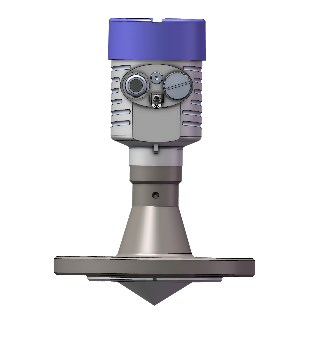

■ High reliability non-contact radar solid matter level transmitter
■ Easy to install with best accuracy of ±5mm
■ General measurement application of solids/liquids in tanks, silos
■ Also suitable for measuring liquids in foamy and stirred forms
■ 4-20mA current output or/and with HART/MODBUS/Profibus
■ Graphical display and with Temperature sensor display
■ False echo storage function to select only true echo for accurate level measurement
Application
■ It’s applicable to our Customers by offering reliable, cost effective and customized solutions on solid level measurement.
■ Applicable to precision requirements solid/liquid level measurement, and need fast start or/meanwhile low power consumption level measurement.
■ It’s suitable for special process such as raw liquid, sewage, and suit for applicable to River, Lakes, Drains, Sewer, etc.
Product Specification
| Frequency | 26GHz Pulse level radar |
| Range | 30m/70m |
| Display Resolution | 0.5mm |
| Accuracy | ±5mm |
| Beam angle | 8° |
| Antenna Type | Horn φ>76mm or lens (corrosive) |
| Signal Output | 4-20mA/HART7 |
| or Profibus | |
| or RS485 | |
| Communication | 4-20mA/HART/MODBUS/PROFIBUS |
| Failure Output | 22mA and 20.5mA (optional) |
| Process temperature | -70 ... +250°C (Depends on antenna form and process connection) |
| Pressure | -1.0 ... 4.0 MPa (Depends on antenna form and process connection) |
| Power Supply | 16~40VDC (Ripple allowed: <100Hz, Uss>1V; 100Hz@100KHz, Uss<10mV ) |
| Adjustment | Setup software/key configuration/mobile APP configuration/tank side table configuration Graphical 160*80 LCD display |
| Chamber | Signal/Double Aluminum Alloy or SS306(optional) |
| Connected Method | >DN80 (Depends on antenna form and process connection) |
| IP Rating | IP67 |
| Approvals | Exia + Exd or No-approvals |
Note:
Chinasimba Co. continuing commitment to improve and upgrade its products and services, and thus, this cover information that will constantly change, without prior notice; nor can it be regarded as the commitments made by Chinasimba. In addition, the user manual has included the safety usage warnings. Hence, if there is any misuse and resulting in any incidents, Chinasimba will not accept any responsibility due to this.
Chinasimba hereby guarantees its product does not exit from defects in materials and workmanship, and fully consistent with the statements in the above disclaimer of warranty.
 |
 |
 |
||
| Model | ANL-8260S3 | ANL-8260S4 | ANL-8260AX | ANL-8260AZ |
| Application | Solid/Liquid Level measurement, preferably for corrosive media acidic application with moderate fumes, precision requirements | |||
| Max. Range | 30M | 70M | 70M | 30M |
| Accuracy | ≤±5mm | ≤±5mm | ≤±5mm | ≤±5mm |
| Process Connection | Flange SS304 | Flange SS304 | Flange PTFE | Flange SS304 |
| Min. Flange Size | DN80 | DN100 | DN80 | DN80 |
| Antenna Material | SS304 /φ76mm horn | SS304 /φ96mm horn | PTFE for corrosive | PTFE for corrosive |
| Process Temperature | -60 ~ 150°C | -60 ~ 230°C | -50 ~ 120°C | -50 ~ 150°C |
| Process Pressure | -1.0 ~ 4.0 MPa | -1.0 ~ 4.0 MPa | -0.8 ~ 1.0 MPa | -0.8 ~ 1.5 MPa |
| Operating Frequency | 25.55~26GHz | 25.55~26GHz | 25.55~26GHz | 25.55~26GHz |
| Output | 4-20mA+HART 2wire | 4-20mA+HART 2wire | 4-20mA+HART 2wire | 4-20mA+HART 2wire |
| Option function | Modbus/PROFIBUS | HART/Modbus/PROFIBUS | HART/Modbus/PROFIBUS | HART/Modbus/PROFIBUS |
| Blind Zone | 300mm | 450mm | 400mm | 400mm |
AiW™ Product Precision vs Distance Map
AiW™ Product assembly structure explosion diagram
Ordering Code
Mechanical Dimension Drawing
