Characteristics

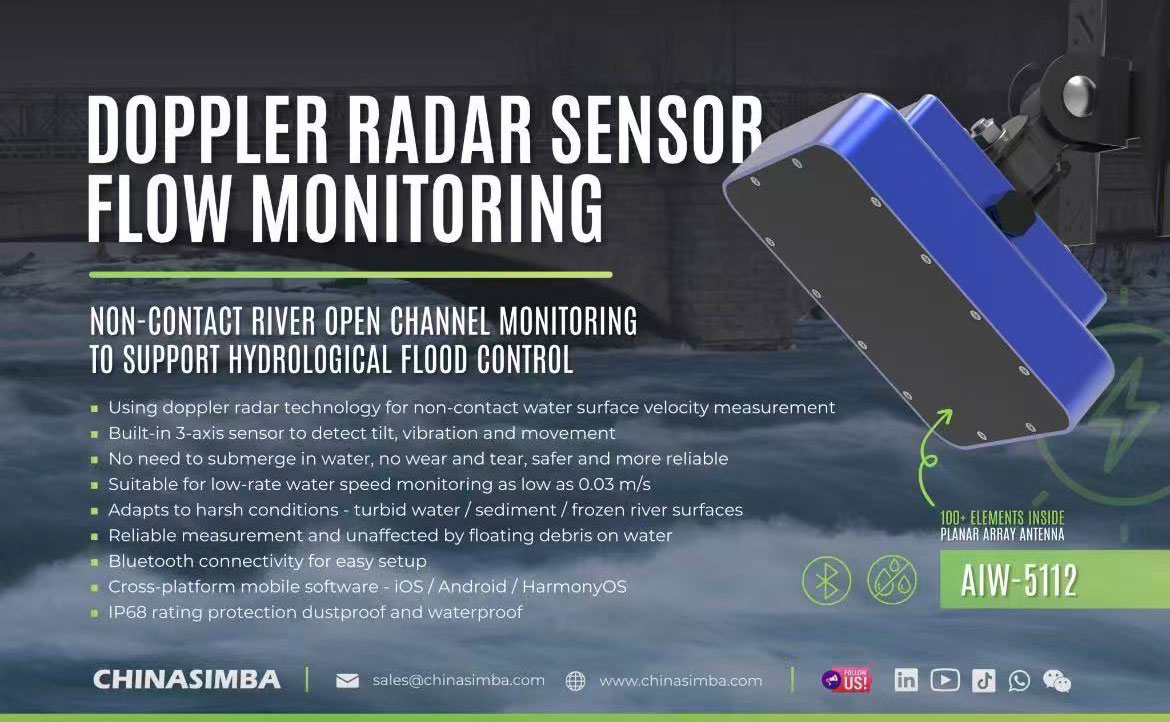

■ Non-contact surface velocity radar / hydrological measurement products, fully enclosed IP68 protection design with fixed installation usage type.
■ The use of planar array antenna design with field adaptability, Eliminate field ecological interference, maintenance-free Identify data influenced by sensor movement (e.g., wind, traffic) using Meta data from integrated vibration and tilt sensors.
Specifications
| Radar Emission Frequency | 23.8~25.3GHz (Frequency parameters can be adjusted adaptively) / RF output power -5dBm |
| Measurement Range | 0.015 ~ 25 m/s, Detection diagonal distance 0.8 ~ 100 m |
| Measurement Accuracy | ±2% of measured value / Resolution 0.03 mm/s @70M high/45° |
| Measuring Response Time | Effective data output time for power boot <5s, Measurement data update cycle <1.5s |
| Radar Opening Angle | 12° Azimuth / 24° Elevation |
| Dimensions | 158mm x 100mm x 57 mm (H) |
| Electrical Connection | M12/ 4 wires of watertight aerial plug, AWG≤0.785/18 |
| Antenna Type | RΦ80mm Planar array antenna, gain 29dB (with POM antenna cover) |
| Signal output | RS-485 (Option: Relay/4-20mA/SDI-12/Wi-Fi /RTU/Bluetooth/IIoT) |
| Communication protocol | RS485 MODBUS (include attitude tilt angle & ambient temperature, measurement flow rate value output) |
| Ambient Temperature | -60….105 °C |
| Relative Humidity | ≤95%RH |
| Environmental Pressure | 860 ~ 1060 mbar (12,47 ~ 15,37psi) |
| Power Supply | 9.0~38VDC, 4 wires, < 120mW (Supports intermittent power supply) |
| Diagnostic Method | Remote PC / mobile Application Software: AQUAflow |
| Shell Material | Anodized Aluminum + POM or PTFE (Antenna cover) |
| Mounting Method | M6 Universal Joint Bracket, Rotation range of swivel mount, Lateral axis: ±90°,Longitudinal axis: ±90° |
| Ratings | IP68 |
| Standard Lead-time | 4 to 5 weeks (Non-customized products) |
| Document Download |  AiW-5112x Planar Array Antenna Surface Velocity Radar |
