产品特性
■ 122GHz频率FMCW雷达系统.
■ 适用于测量固体、液体等介质
■ 应用于化工行业反应罐，并可工作于蒸汽环境。
产品参数

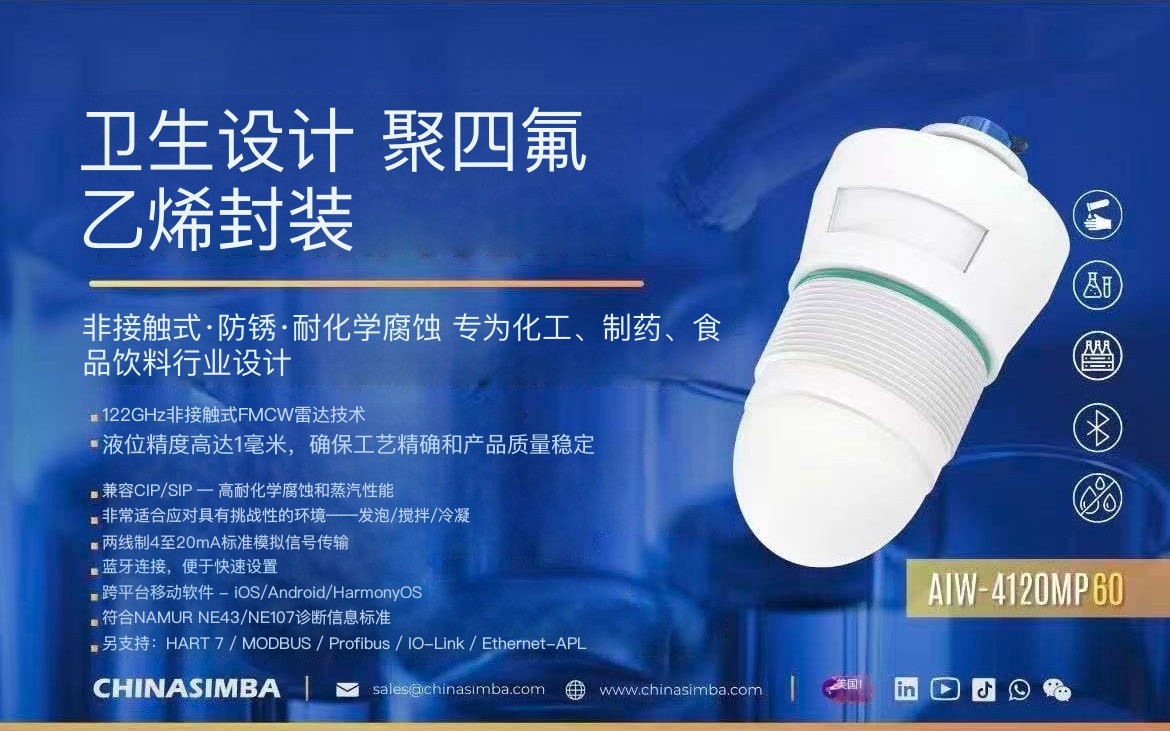

ANL/AiW-4120MP60 (增强型G2-¼塑料外壳版本)
非接触式智能雷达液位计数据表
| ANL/AiW-4120MP60 | 外壳/天线材料POM | 外壳/天线材料PTFE | Note |
|---|---|---|---|
| 最大量程 | 10M/18M/20M/30M/40M | 40M only for HART/IO-Link/APL version | |
| 盲区 | < 100mm from the Antenna down surface | ||
| 测量频率 | Tx/Rx frequency 120 to 125GHz Dynamic FM Sweep Bandwidth 1~5GHz (The adjustment FM range can be customized according to the ISM requirements of the customer’s region) |
||
| 测量方法 | FMCW Radar System, TX power -3dBm (not included antennas), RX Input compression point -20dBm & Gain 10dB (not included antennas) | ||
| 透镜天线材质 | POM Φ60mm | PTFE Φ60mm | Material exposed to tank atmosphere |
| 天线波束角 / 增益 | Beam angle 6°/ Gain 25.8dB | Beam angle 4.5°/ Gain 31.7dB | |
| 测量分辨率 | 0.1mm (<10m range) | Depends on the bandwidth and range | |
| 测量精度 | ±1mm (<10m range) / ±2mm (18m/20m range) / ±4mm (30m/40m range) | ||
| 环境温度 | -40 … +85 °C | -40 … +85 °C | |
| 过程测度 | -40°C … +120°C | -40°C … +120°C | |
| 过程压力 | -0.1 ~ +2.5MPa | -0.1 ~ +2.3MPa | |
| 安装连接方式 | Thread G2-¼ or NPT | ||
| 信号输出 | 4-20 mA (regular), or/ 4-20 mA/HART7, or/ (RS-485) Modbus, or/ IO-Link, or/ Ethernet-APL (option issue) | ||
| 影响测量精度的变量因素 |
Specifications for the digital measured value： Temperature drift - Digital output: ±1mm/10K relating to the max. measuring range or max. 15 mm Additional deviation through electromagnetic interference acc. to EN-61326: < ±10 mm Specifications apply also to the current output Temperature drift - Current output: ±0.02%/10K relating to the 16.7 mA span or max. ±0.2% Deviation in the current output due to digital/analogue conversion Non-Ex and Ex-ia version: < ±1μA; Ex-d-ia version: < ±1μA Additional deviation through electromagnetic interference acc. to EN-61326: < ±150μA |
||
| 现场指示器/调试方式 (LOI) |
1. 160x80 LCD FSTN RGB backlight monitor adapter with keyboard module, operation Temp. -20°C … 70°C. or 128x64 OLED monitor adapter with keyboard module, operation Temp. -55°C … 80°C. (option) or 230x240 LCD TFT colors monitor adapter with keyboard module, operation Temp. -20°C … 70°C. (option only for 4-wrie system) 2. (APP) Radar MobileManager via BT wireless connection 3. (PC software) Radar PCManager /or Via a PC with PACTware/DTM (an interface converter AiW-305 USB CONNECT is required) |
||
| 指示/调整 (LOI) | （APP）通过蓝牙无线连接RadarMobileManager | ||
| 测量输出更新率 | < 3s. (Run-up time to get first Reading: <5s for RS485; <45s for mA loop) @UB=16VDC | ||
| 适用供电电源 | 16V … 40 VDC / Load resistor > 500Ω (for mA version), 12V… 36VDC (for RS485 version) | ||
| 无线通信规范 | Bluetooth 5.0 (Bluetooth 4.0 LE compatible), communication range 40m, in rainy day 20m | ||
| 认证证书 | CLEx/CNEx: Ex ia IIC T6 Ga IP67; Ex d IIC T6 Gb IP67 | ||
| 产品外壳规格 | Plastic POM or PTFE, IP67 / IP68 | ||
| 推荐应用工况 | Liquids, solids, and corrosive environment applications | ||
| Document Download |  AiW-4120MPMC_120GHz Operation_Manual_DY0723 |
服务联系电话：13799977915、18965063391（技术支持）、18106067295（售后服务）
虽然我们已经将手册的内容与仪器的描述进行了核对，但可能仍会有一些变化，我们无法确保它完全一致。内容将被有序地检查和纠正，勘误表将在后续版本中发布。我们欢迎用户提出各种改进建议。[技术数据可能会发生变化]
产品尺寸
