产品优势
■ 80GHz 频率调频连续波雷达系统。
■ 使用于液体、固体中的测量应用。
■ 高温（<450°C）应用，也适用于被蒸汽加热的液体。
产品优势
| ANL-9080N80-2 | Lens material PTFE | Lens material PEEK | N60 (cool version) |
|---|---|---|---|
| Max. measuring range | 40M | 40M | 40M |
| Near blind spot | <100mm from the flange down surface | ||
| Tx/Rx frequency | Tx/Rx frequency 76.2 to 80.2GHz Dynamic FM Sweep Bandwidth 1~4GHz (The adjustment FM range can be customized according to the ISM requirements of the customer’s region) |
||
| Meas. Principle | FMCW Radar System | ||
| Lens Antenna Medium | PTFE Φ80mm | PEEK Φ80mm | PEEK Φ80mm |
| Antenna beam / Gain | Beam angle 4.5°/ Gain 31.9dB | Beam angle 4.5°/ Gain 30.5dB | |
| Meas. Resolution | 0.1mm (<10m range) | ||
| Meas. Accuracy | ±2 mm | ||
| Ambient temperature | -40 … +85 °C | -60 … +105 °C | |
| Process temperature | -40°C … +450°C | -60°C … +450°C | |
| Process pressure | -0.2 ~ +0.5MPa | -1.0 ~ +3.5MPa | |
| Process connection | Flanges ≥DN80 | ||
| Signal output | 4-20 mA/HART7 2-wire, 4-20 mA/HART7 4-wire, Profibus PA / DP, Ethernet-APL, Modbus protocol 4-wire | ||
| Variables influencing meas. accuracy |
Specifications for the digital measured value： Temperature drift - Digital output: ±1mm/10K relating to the max. measuring range or max. 15 mm Additional deviation through electromagnetic interference acc. to EN-61326: < ±10 mm Specifications apply also to the current output Temperature drift - Current output: ±0.01%/10K relating to the 16.7 mA span or max. ±0.15% Deviation in the current output due to digital/analogue conversion Non-Ex and Ex-ia version: < ±1μA; Ex-d-ia version: < ±1μA Additional deviation through electromagnetic interference acc. to EN-61326: < ±150μA |
||
| Indication/Adjustment (LOI) |
1. 160x80 LCD FSTN RGB backlight monitor adapter with keyboard module, operation Temp. -20°C … 70°C. or 128x64 OLED monitor adapter with keyboard module, operation Temp. -55°C … 80°C. (option) or 230x240 LCD TFT colors monitor adapter with keyboard module, operation Temp. -20°C … 70°C. (option only for 4-wrie system) 2. (APP) Radar MobileManager via BT wireless connection 3. (PC software) Radar PCManager /or Via a PC with PACTware/DTM (an interface converter AiW-305 USB CONNECT is required) |
||
| Power supply | 16V ~ 40 VDC / Load resistor > 600Ω | ||
| Wireless communication | Bluetooth 5.0 (Bluetooth 4.0 LE compatible), communication range 40m, in rainy day 20m | ||
| Approvals | Ex ia IIC T6 Ga IP67; Ex d IIC T6 Gb IP67 | ||
| Housing | Single chamber / Double chamber, Aluminum / Stainless steel / Plastic PBT, IP66 / IP67 / IP68 | ||
| Applications | liquids, solids, high-temperature applications | ||
产品尺寸
以下的尺寸图纸仅代表所有可能版本的一个摘录。详细的尺寸图纸可以在 www.chinasimba.com/downloads 下的“Drawings”中下载。
DTM Adapter
AiW-305 USB Converter Adapter
远程控制器兼指示器的适配器
Remote indicator with HART compatible (RDM-25)

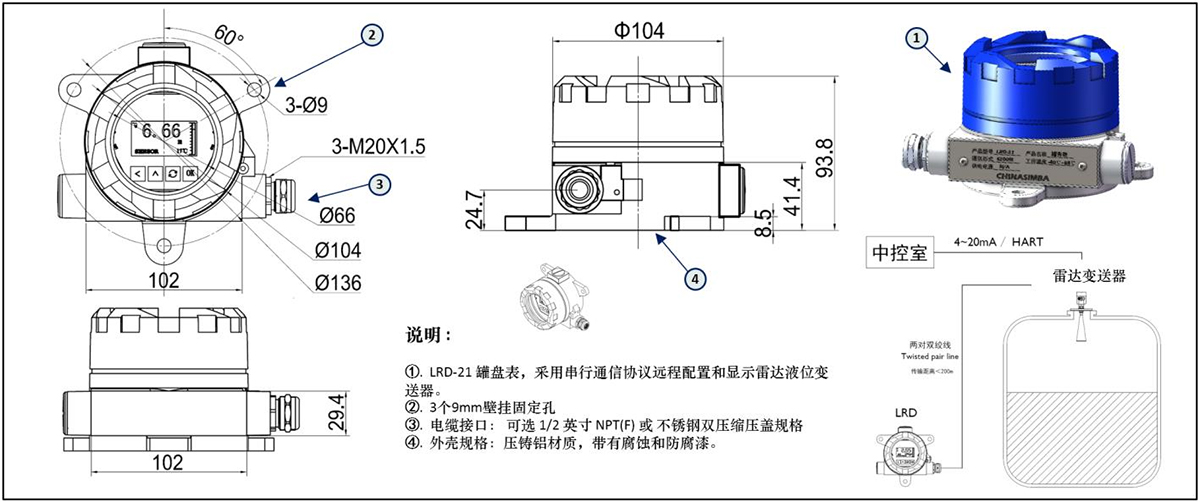

Remote indicator via Serial communication (LRD-21)
蓝牙远程指示器
ANL9080 雷达液位变送器（具有蓝牙功能）可以通过蓝牙无线系统连接到手机。手机需要安装 RadarMobileManager 应用程序。这是一款免费注册的应用程序（安卓和 IOS 等）软件，可以直接在各大应用商店下载安装，或者请联系相关产品供应商。
The Radar Antenna Specification of the ANL-9080-2 （Datasheet download)
Thermal simulation graph for the ANL-9080-2 （Datasheet download)
Aluminum housing
Stainless steel housing
Plastic housing
Indication/Adjustment LOI Adapter
